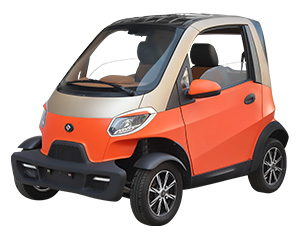

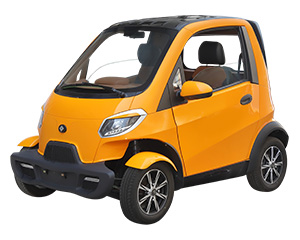

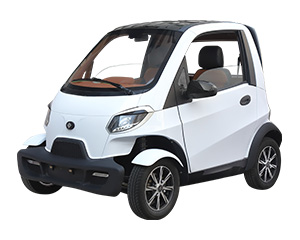

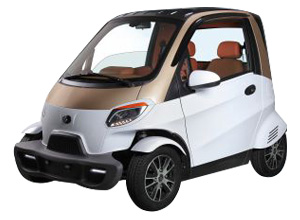

Vehicle Demonstration

Data parameter

project Technical Parameters project Technical Parameters
Vehicle model LZD-M3-2 Motor power (kw) 4
Appearance size (length × width × height) (mm) 2350x1450x1550 Nominal voltage 60V
Wheelbase (mm) 1570 Rated speed (R/min) 2500
Front/rear wheelbase (mm) 1250 Insulation Grade H
Minimum ground clearance (mm) 160 Total battery capacity 60V 120Ah
Minimum turning radius (mm) 4000 Number of batteries 5
Front wheel steering angle 18.5° Tire specification 135/70 R12
Whole vehicle curb weight (kg) 650 Tyre pressure (KPA) 250
Maximum load (kg) 180 Climbing capacity ≥20%
Maximum speed 60km/h Steering Control Type Steering Wheel
Brake type Front and rear disc brakes Power consumption of 100 km 8-10
Hub type Aluminum alloy Luggage capacity 350L
Door structure 3 doors and 2 seats Instrument display Multimedia screen
Air conditioning Three-level adjustable heating and cooling Shift mode Push Button type
Drive way rear drive Range (km) 120
